7

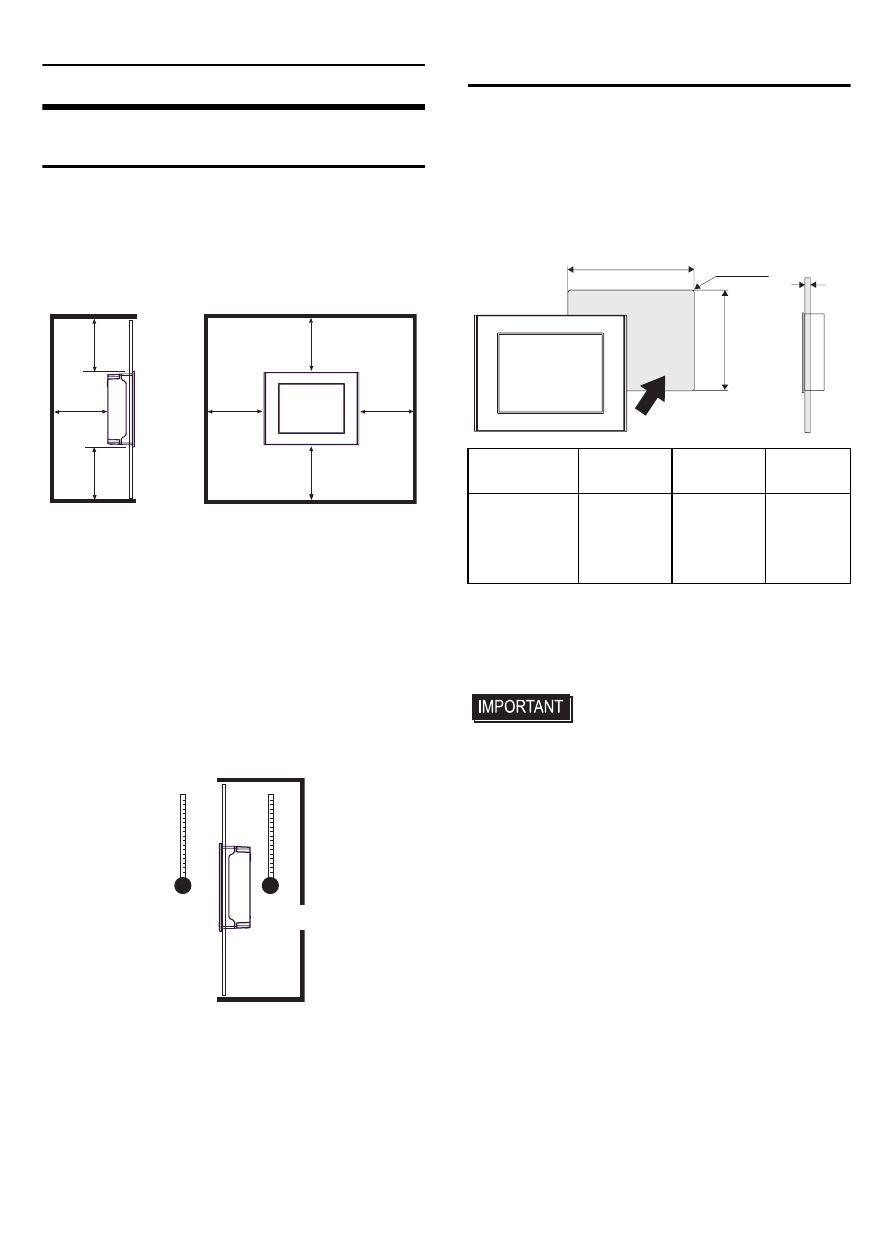

Installations
1. Installation Requirements
• For easier maintenance, operation, and
improved ventilation, be sure to install the
GP at least 100mm [3.94in.] away from
adjacent structures and other equipment.
• Be sure that the surrounding air
temperature and the ambient humidity
are within their designated ranges.
(Surrounding air temperature: 0 to
50°C, Ambient humidity: 10 to 90%RH,
Wet bulb temperature: 39°C max.)
When installing the GP on the panel of
a cabinet or enclosure, “Surrounding
air temperature” indicates both the
panel face and cabinet or enclosure’s
internal temperature.
• Be sure that heat from surrounding
equipment does not cause the GP to
exceed its standard operating
temperature.
2. GP Installation
(1) Create a Panel Cut and insert the GP
into the panel from the front. Deter-
mine the panel thickness according to
the panel thickness range with due
consideration of panel strength.
(2) Confirm that the installation gasket is
attached to the GP unit and then
place the GP unit into the Panel from
the front.
• It is strongly recommended that you
use the installation gasket, since it
absorbs vibration in addition to
repelling water.
For the procedure for replacing the
installation gasket, refer to “GP3000
Series Hardware Manual”.
100
[3.94]
100
[3.94]
100
[3.94] 100
[3.94]
Unit:mm[in.]
100
[3.94]
100
[3.94]
100
[3.94]
Panel Face Inside Cabinet
GP X Y
Panel
thickness
AGP-3300 U
156.0
[6.14 ]
123.5
[4.86 ]
1.6 [0.06]
to
5.0 [0.20]
Unit: mm [in.]
X
r
≤ 3 [0.12]
Panel
thickness
GP
Y
+1
-0
+0.04
-0
+1
-0
+0.04
-0
