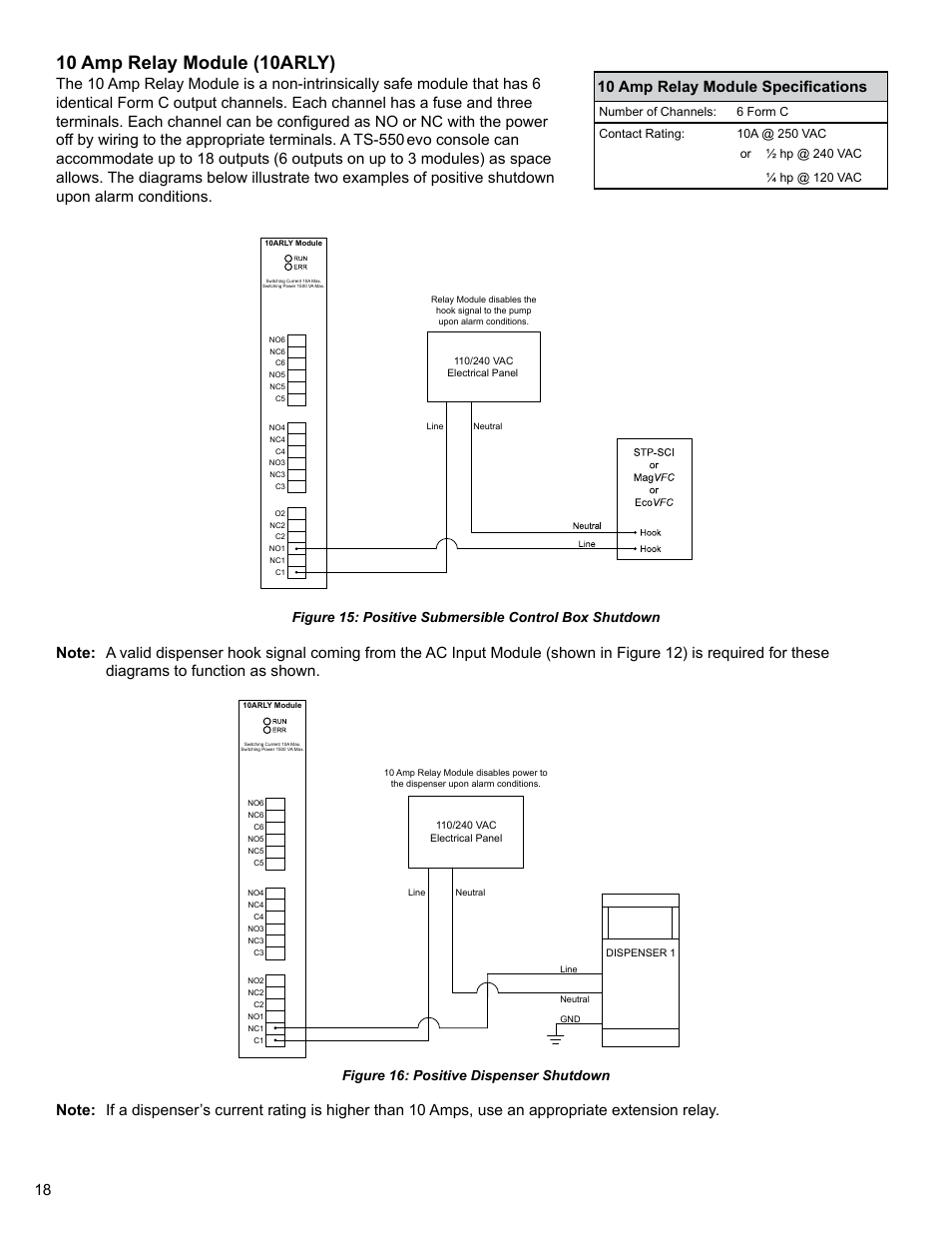

10 amp relay module (10arly), Figure 16: positive dispenser shutdown – Franklin Fueling Systems TS 550 evo Fuel Management System Installation User Manual
Page 18
