A P P E N D I X A
LEVEL SCOUT CONNECTION DIAGRAMS

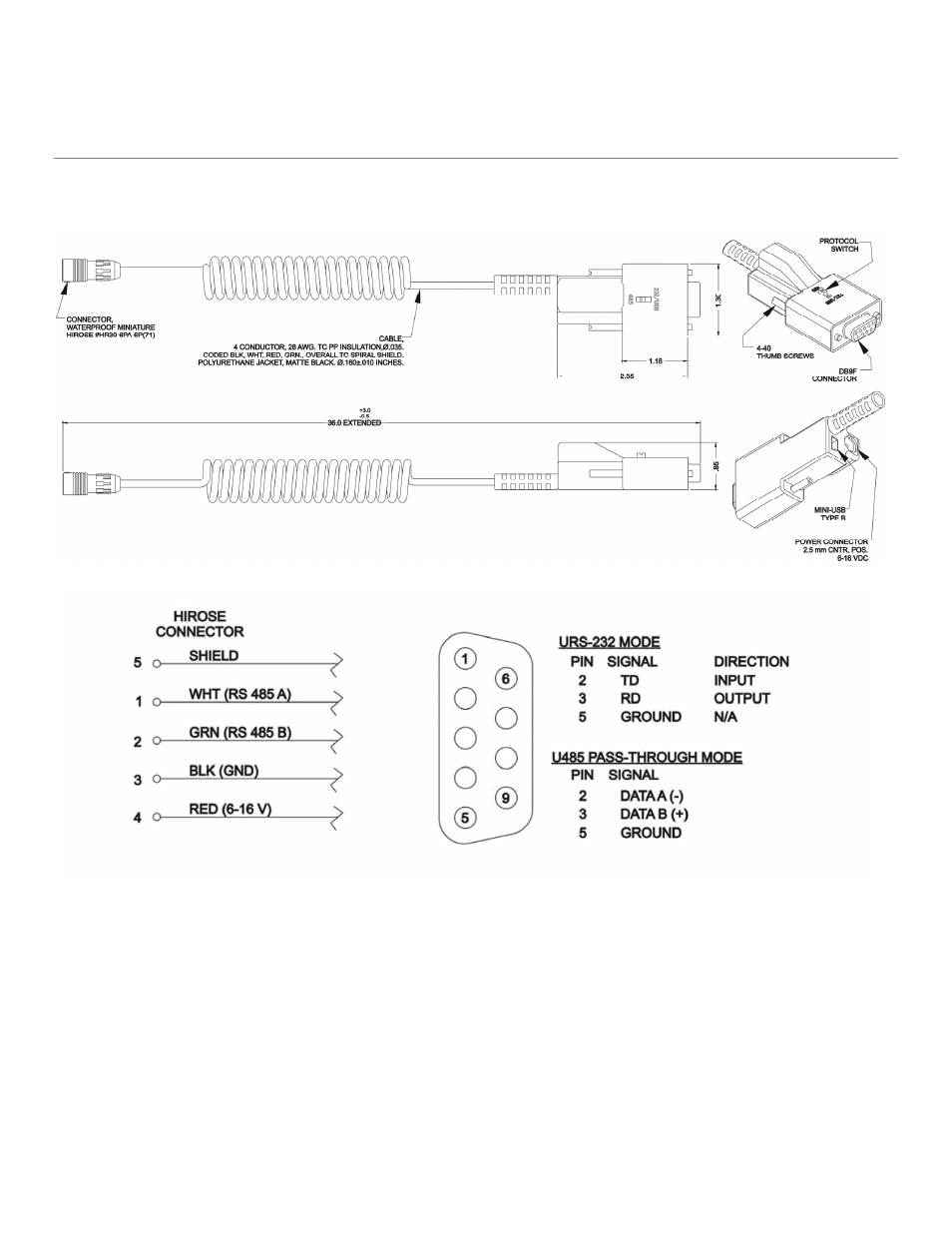

Figure A-1 shows the 778 all-in-one adapter. The 778 provides connection from a field cable with an in-line vent filter to a modem,
Pocket PC, or computer. It includes built-in conversion to RS-232C and USB and has a DC input connector for temporary power.
Use with a 772 for SDI-12 applications.
