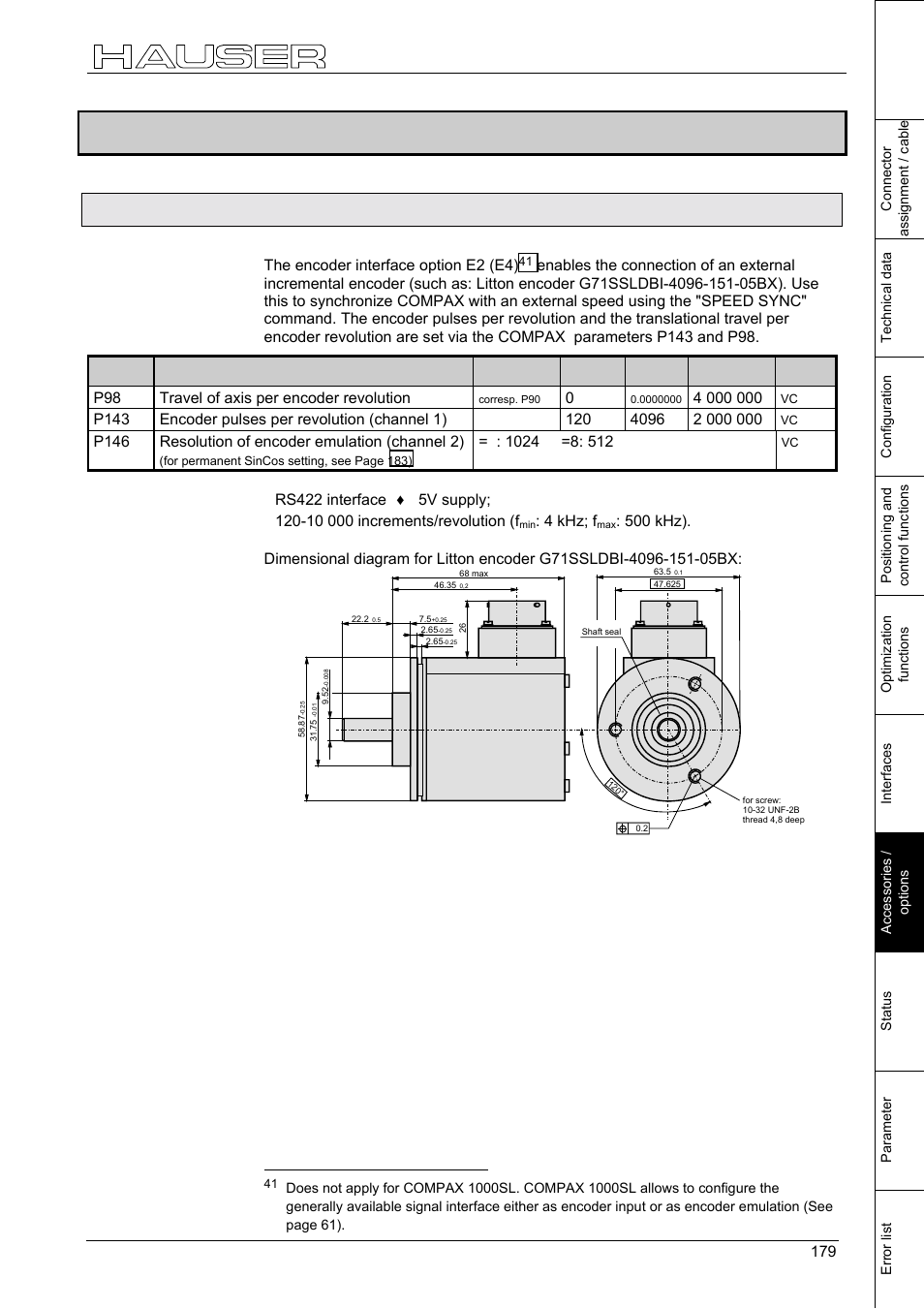

Page 179: 1 encoder interface, The encoder interface option e2 (e4), P98 travel of axis per encoder revolution, P146 resolution of encoder emulation (channel 2), Rs422 interface ♦ 5v supply, 4 khz; f, Technical data: dimension diagram
Process interfaces, Encoder interface, 6 process interfaces | 1 encoder interface, The encoder interface option e2 (e4), P98 travel of axis per encoder revolution, P146 resolution of encoder emulation (channel 2), Rs422 interface ♦ 5v supply, 4 khz; f, Technical data: dimension diagram | Parker Products COMPAX-M /-S (L) User Manual | Page 179 / 242
