Byte Transfer Order
The DCMD[ENDIAN] bit indicates the byte ordering in a word when data is read from or written
to memory. Refer to
for details. The DCMD[ENDIAN} bit must be set to
0, which is little endian transfers.
Figure 5-5, “Little Endian Transfers” on page 5-10
shows the order which data is transferred as
determined by the DCMD[ENDIAN] and DCMD[SIZE] bits.
If data is being transferred from an internal device to memory, DCMD[ENDIAN] is set to a 0, and
DCMD[SIZE] is set to a 1, the memory receives the data in this order:
1. Byte[0]
2. Byte[1]
3. Byte[2]
4. Byte[3]

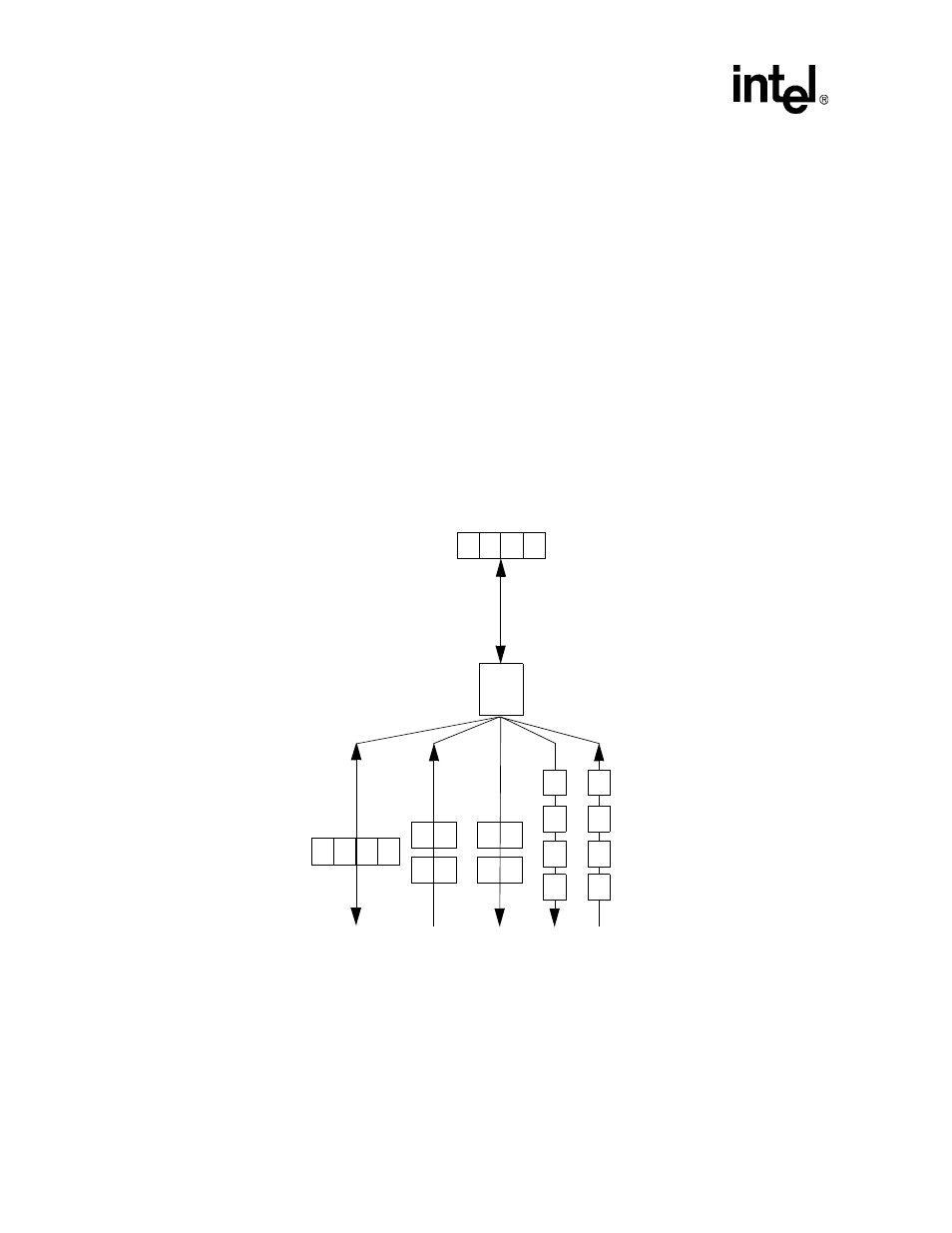

Figure 5-5. Little Endian Transfers
D[31]
D[0]
from memory
3
2
1
0
DMAC
From
To
To
From
3
2
1
0
3
2
1
0
1
0
1
0
3
2
3
2
Half-Word Wide
Device
Byte Wide
Device
Little Endian DMA Transfers
3
2
1
0
To/From
Word Wide
Device
