SECTION 3 ABOUT EXTERNAL REFERENCE SIGNAL INPUT
3 - 1
‘
‘
IN CASE OF USING EXTERNAL REFERENCE SIGNAL
NEED TO MODIFY

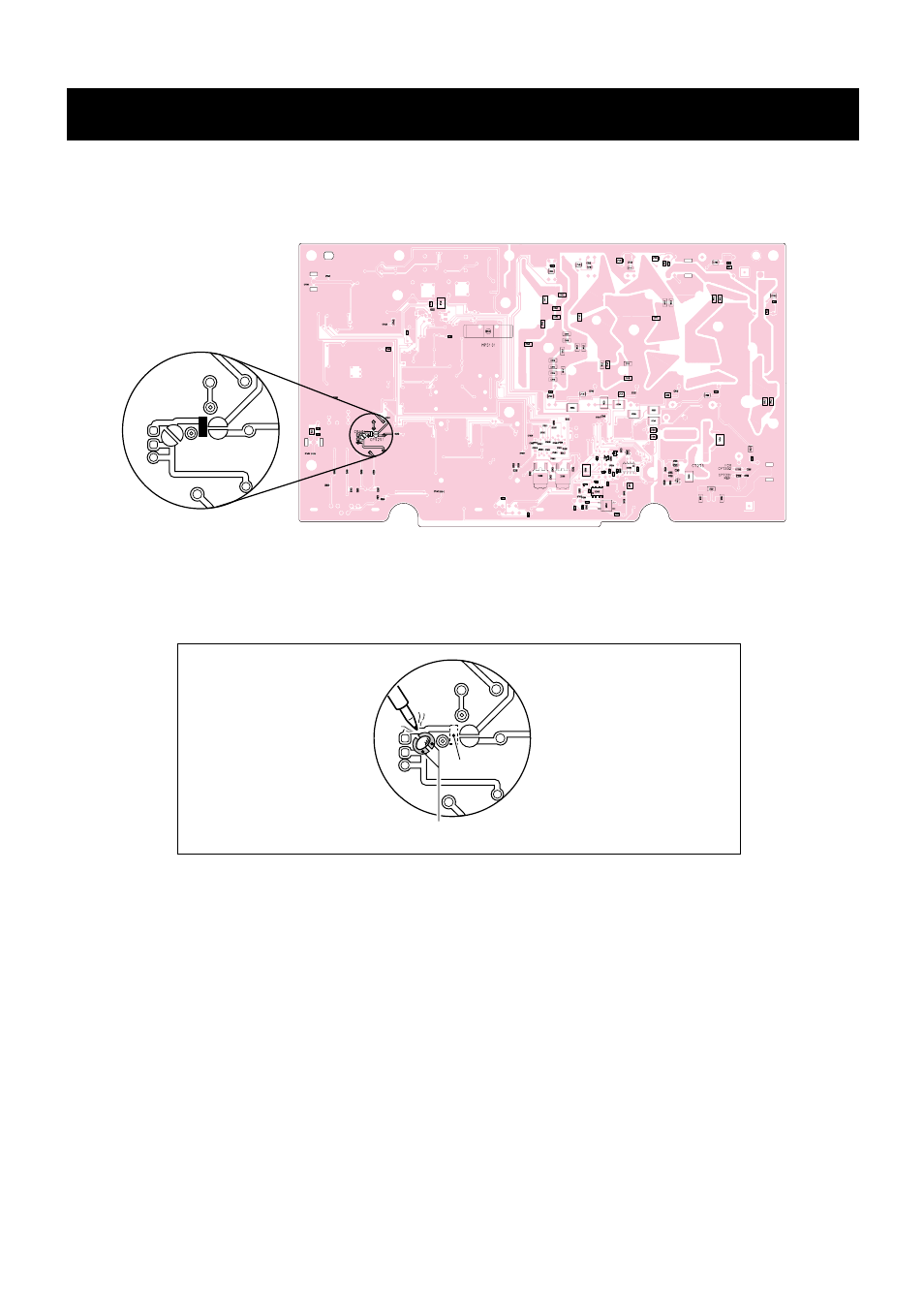

the PLL unit (bottom side) as below when using external reference.
q
Remove R5251 from the PLL unit.
w
Solder disconnect points (CP5041) on the PLL unit.
1
4
8
1
4
8
5
5
CP5041
R5251
w
q
